c.pCO mini

P+D* - P+P*

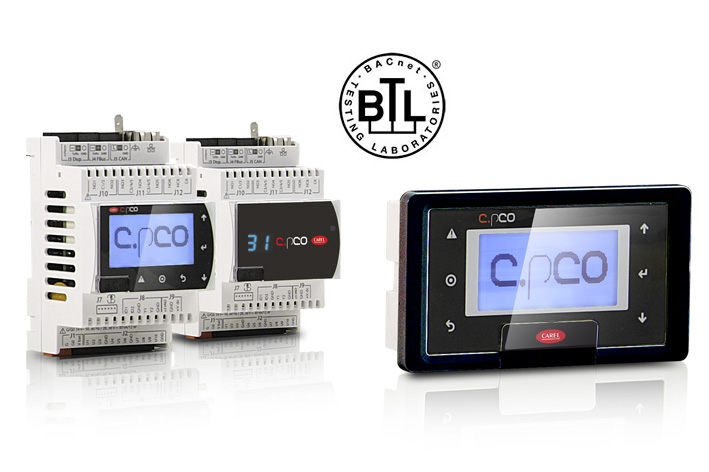

c.pCO mini
  • Загальні характеристики

    The c.pCO mini universal programmable controllers are designed for applications with limited space in the ventilation, chiller, rooftop, rack, close control and blast chiller markets.

    They offer specific features to improve efficiency in HVAC/R systems, specifically:

    • flexibility of use due to their compact size compared to the c.pCO (4 DIN modules) and the different product models (basic, enhanced, high end), available in panel or DIN rail mounting versions. All the models feature a USB port and universal I/O channels, with additional channels available through I/O expansions;
    • built-in driver for controlling unipolar electronic expansion valves;
    • connectivity through up to two FieldBus and BMS serial lines with configurable protocol (CAREL or Modbus®) and one USB port;
    • networking via the built-in Ethernet interface (IPV6 ready), with a wide range of standard protocols available for local connectivity (web server via HTTP, Modbus TCP/UDP, BACnet IP/MSTP, FTP, FTPS, DHCP, DNS, mDNS, NTP).


    c.pCO mini models are for programming using the c.suite or STone development environments.

  • Переваги

    Compactness

    Different versions available in terms of the number of I/Os, connectivity and unipolar electronic expansion valve driver option, all in just four DIN modules. Both DIN rail and panel mounting optimise space occupied in the application.

    Programmability

    Depending on the model, c.pCO mini can be programmed using the c.suite development environment or the new STone development environment.

    Security

    Cybersecurity is a priority, constantly guaranteed on the c.pCO mini controllers through periodic security assessments carried out by independent third parties. The STone-based models are designed in line with the IEC 62443 standard, integrating advanced features such as secure boot and digital signature with asymmetric encryption system.

    I/O Flexibility

    In addition to 6 relays, all c.pCO mini models have 10 universal I/O channels, allowing custom arrangements of inputs/outputs. Thanks to the CAREL proprietary ASIC chip, the universal channels can be configured independently as analogue inputs, digital inputs or analogue outputs.

    Advanced connectivity

    c.pCO mini, on the models where featured, has a built-in Ethernet port for connection to the tERA cloud platform without requiring additional gateways. The c.pCO mini models have up to two built-in serial interfaces (BMS and/or FieldBus) and a USB-C host port. Choice of a wide range of communication protocols (e.g. Modbus, CAREL, BACNet, Konnex, TCP/IP, HTTP, FTP, DHCP, DNS, NTP, SNMP). STone-based models natively feature connection to CAREL apps.





Документація

Технічна

  • *2D-3D малюнки
    Код Опис Мова Дата * Випуск
    Код 2d-3d cpCOmini DIN

    Опис 2D-3D drawings

    Мова ALL

    Дата 10/11/2015

    Випуск R0

    Код 2d-3d cpCOmini - Panel version

    Опис 2D-3D drawings

    Мова

    Дата 10/11/2015

    Випуск R0

  • *Посібники
    Код Опис Мова Дата * Випуск
    Код +0300057IT

    Опис c.pCO Controllo programmabile

    Мова ITA

    Дата 28/03/2025

    Випуск 1.7

    Код +0300057EN

    Опис c.pCO Programmable Controller

    Мова ENG

    Дата 28/03/2025

    Випуск 1.7

    Код +0300057PL

    Опис c.pCO sistema Kontroler Programowalny

    Мова POL

    Дата 28/03/2025

    Випуск 1.7

    Код +0300057RU

    Опис Семейство c.pCO Программируемый контроллер

    Мова RUS

    Дата 26/10/2020

    Випуск 1.4

  • *Технічні брошури
    Код Опис Мова Дата * Випуск
    Код +0500058ML

    Опис P+D* and P+P*: c.pCOMini – Control Programable Integrado / Controle Programável Integrado

    Мова POR  SPA

    Дата 26/05/2025

    Випуск 1.9

    Код +0500058IE

    Опис P+D* and P+P*: c.pCOMini – Controllo Programmabile Integrato / Integrated Programmable Controller

    Мова ENG  ITA

    Дата 26/05/2025

    Випуск 1.9

    Код +0500058ZH

    Опис P+D* and P+P*: c.pCO mini – 集成式可编程控制器 / Integrated Programmable Controller

    Мова CHI  ENG

    Дата 10/04/2024

    Випуск 1.8


Комерційна

  • *Брошури
    Код Опис Мова Дата * Випуск
    Код +3000098IT

    Опис c.pcosistema efficienza grazie al collegamento in rete

    Мова ITA

    Дата 01/04/2016

    Випуск 2.0

    Код +3000098RU

    Опис C.PCO SISTEMA

    Мова RUS

    Дата 01/04/2016

    Випуск 2.0

    Код +3000082EN

    Опис Exhibition @ a glance

    Мова ENG

    Дата 09/10/2014

    Випуск 2.0

  • Other related documentation
    Код Опис Мова Дата * Випуск
    Код +800004030

    Опис Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    Мова ITA

    Дата 05/02/2025

    Випуск 1.3

    Код +800004031

    Опис Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    Мова ENG

    Дата 05/02/2025

    Випуск 1.3

    Код +800004036

    Опис Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach

    Мова POL

    Дата 05/02/2025

    Випуск 1.3

    Код +3000262EN

    Опис Highly-efficient energy recovery for controlled mechanical ventilation units - Combined thermal wheel + reverse-cycle heat pump solution

    Мова ENG

    Дата 01/08/2024

    Випуск 1.0

    Код +3000262IT

    Опис Recupero dell’energia ad alta efficienza per unità di ventilazione meccanica - Soluzione combinata di scambiatore di calore rotativo e pompa di calore reversibile

    Мова ITA

    Дата 01/08/2024

    Випуск 1.0


Images

  • High resolution images
    Код Опис Мова Дата * Випуск
    Код PH14LP+30B-cpCO-mini-no-display

    Опис c.pCOmini-CAREL-Programmable Controls-c.pCO sistema

    Мова ALL

    Дата 02/09/2021

    Випуск R.0

    Код PH14LP+306-cpCO-mini

    Опис c.pCOmini-CAREL-Programmable Controls-c.pCO sistema

    Мова ALL

    Дата 02/09/2021

    Випуск R.0

    Код PH14LP+307-cpCO-mini-frontal

    Опис c.pCOmini-CAREL-Programmable Controls-c.pCO sistema

    Мова ALL

    Дата 02/09/2021

    Випуск R.0

    Код PH14LP+305-cpCOmini-panel

    Опис c.pCOmini panel-CAREL-Programmable Controls-c.pCO sistema

    Мова ALL

    Дата 02/09/2021

    Випуск R.0

    Код PH14LP+306-cpCO-mini

    Опис cpCO-mini

    Мова ALL

    Дата 01/05/2014

    Випуск R.0
