MasterCase2
MC2*
Загальні характеристики

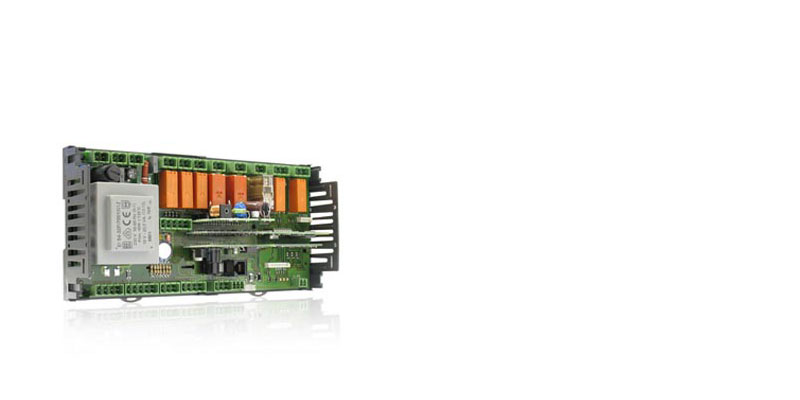

MasterCase2 represents the most advanced solution for the complete control of refrigerating utilities, such as showcases and cold rooms, and is therefore ideal for applications in supermarkets. It combines the management of PT1000 probes (see the corresponding model) and power relays for the direct management of the electrical loads.
Up to 7 probes can be connected, configured as NTC, 0 to 5 V (PT1000) 4 to 20 mA, while there are 8 relay outputs for the control of compressors/solenoid valves, evaporator fans, defrost, alarm, hot wire, lights, aux1 and aux2. MasterCase2 can control a PWM on/off electronic expansion valve or alternatively, with the optional driver board, an expansion valve with stepper motor, such as the CAREL E2V.
MasterCase2 can be connected in a local network for the Main/Secondary management of multiplexed showcases. A series of optional accessories is available for installation on the MasterCase2, such as: clock board and serial boards for interfacing to a supervisory system.
Документація
Технічна
-
*Посібники
* Записи впорядковані за датою
Код Опис Мова Дата * Випуск Код +03P220220 Опис MasterCase2 Мова ITA Дата 28/10/2005 Випуск 1.0 Код +03P220221 Опис MasterCase 2 Мова ENG Дата 28/10/2005 Випуск 1.0 Код +03P220223 Опис MasterCase2 Мова GER Дата 28/10/2005 Випуск 1.0
Комерційна
-
*Брошури
* Записи впорядковані за датою
Код Опис Мова Дата * Випуск Код +302240373 Опис Retail sistema...the one solution Мова GER Дата 09/06/2010 Випуск 4.0 Код +302240374 Опис Retail sistema...the one solution Мова SPA Дата 07/02/2007 Випуск 4.1 Код +302240375 Опис retail sistema...the one solution Мова POR Дата 07/02/2007 Випуск 4.1 Код +302240377 Опис retail... the one solution Мова RUS Дата 07/02/2007 Випуск 4.1 Код +302240370 Опис Retail Solutions... the one solution Мова IND Дата 09/10/2006 Випуск 4.0 Код +302240371 Опис Retail sistema...the one solution Мова ENG Дата 09/10/2006 Випуск 4.0 Код +30C239431 Опис 陈列柜和冷库的应用 解决方案 Мова CHI Дата 01/10/2006 Випуск 1.0
